The compact underground mining truck is used to load, transport and dump ores in non-coal mines. This mining rock truck requires that the working tunnel should have firm base floor, good ventilation condition, and without explosive medium or gravels around. The new design of mining haulage trucks not only improve production efficiency, but also improve safety, maintainability, and operational comfort.
| Item | Unit | UK20 / XTUT20 | XTUT30 |

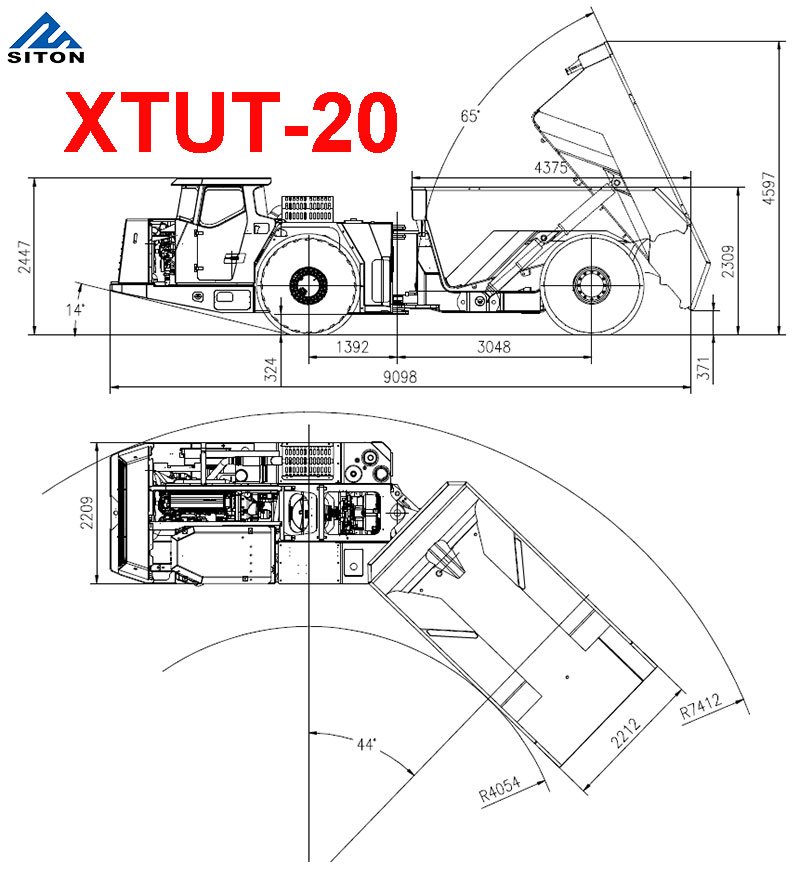

| Overall Dimension (L*W*H) | mm | 9098X2280X2447 | 9920X3000X2580 |
| Rated Load Capacity | KG | 20 | 30 |
| Speed (4 gears) | Km/h | 4.5-25 | 4.5-25 |
| Standard Dumping Box Volume | m3 | 10 | 15 |
| Tractive Force (Max) | KN | 218 | 290 |
| Dumping Box Unloading Angle | ° | 65 | 65 |
| Dumping Box Approach Angle | ° | 14 | 14 |
| Item | Unit | UK20 / XTUT20 | XTUT30 |
| Empty weight | KG | 22600 | 31000 |
| Front axle load (Empty) | KG | 13600 | 22650 |
| Rear axle load (Empty) | KG | 6000 | 8350 |
| Full loaded weight | KG | 39600 | 61000 |
| Front axle load (Full) | KG | 19080 | 31150 |
| Rear axle load (Full) | KG | 20520 | 29850 |
| Item | Unit | WJ-3 | WJ-5 / XTUW-4 |
| Rated Power | KW | 160 | 235 |
| Torque (Max) | Nm | 1060 | 1310 |
| Displacement | L | 7.7 | 7.7 |
| Emission Standard | Euro stage Ⅲ | Euro stage Ⅲ |
| Item | Unit | WJ-3 | WJ-5 / XTUW-4 |
| Engine Voltage | V | 28 | 24 |
| Battery | / | 2X12V,120Ah | 2X12V,120Ah |
| Parking Light | PCS | 8 | 4 |
| Alarm Function | High or low oil pressure warning | ||
Parameter tables use the technical terms from the manufacturer data sheet.
The compact underground mining truck is used to load, transport and dump ores in non-coal mines. This mining rock truck requires that the working tunnel should have firm base floor, good ventilation condition, and without explosive medium or gravels around.
