Unit Description

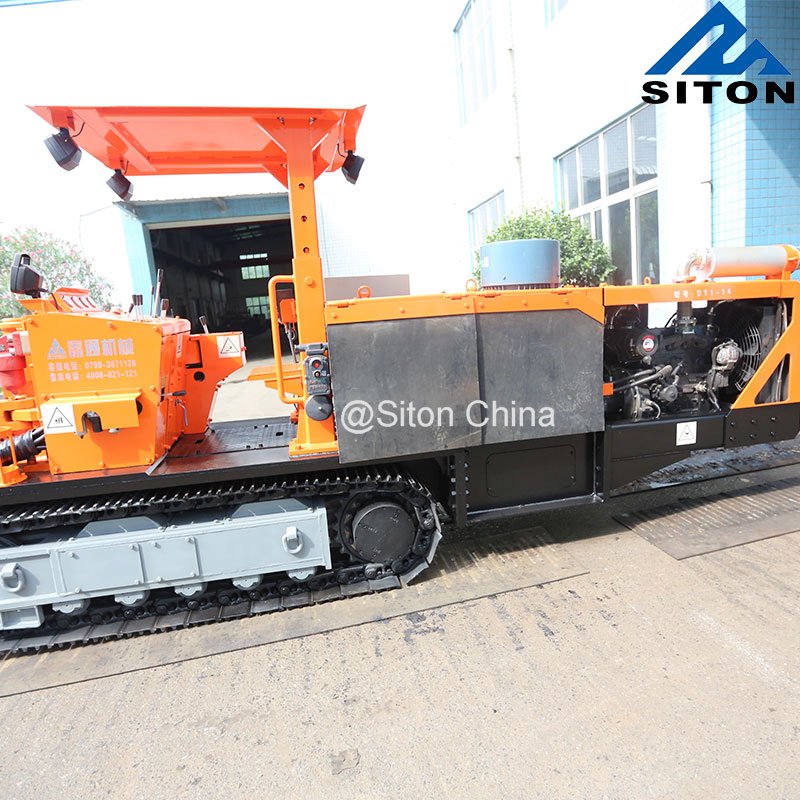

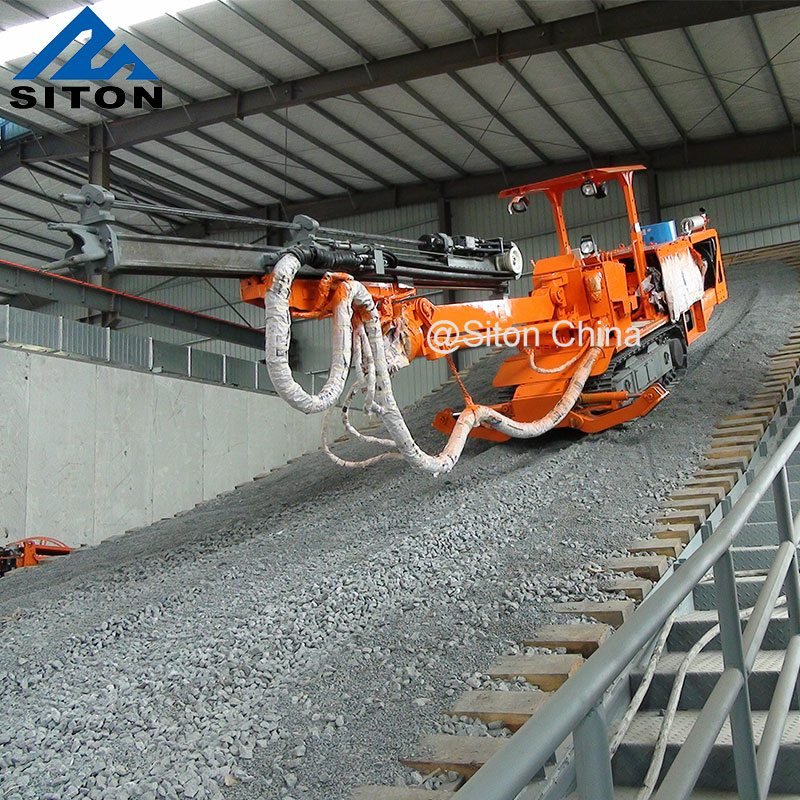

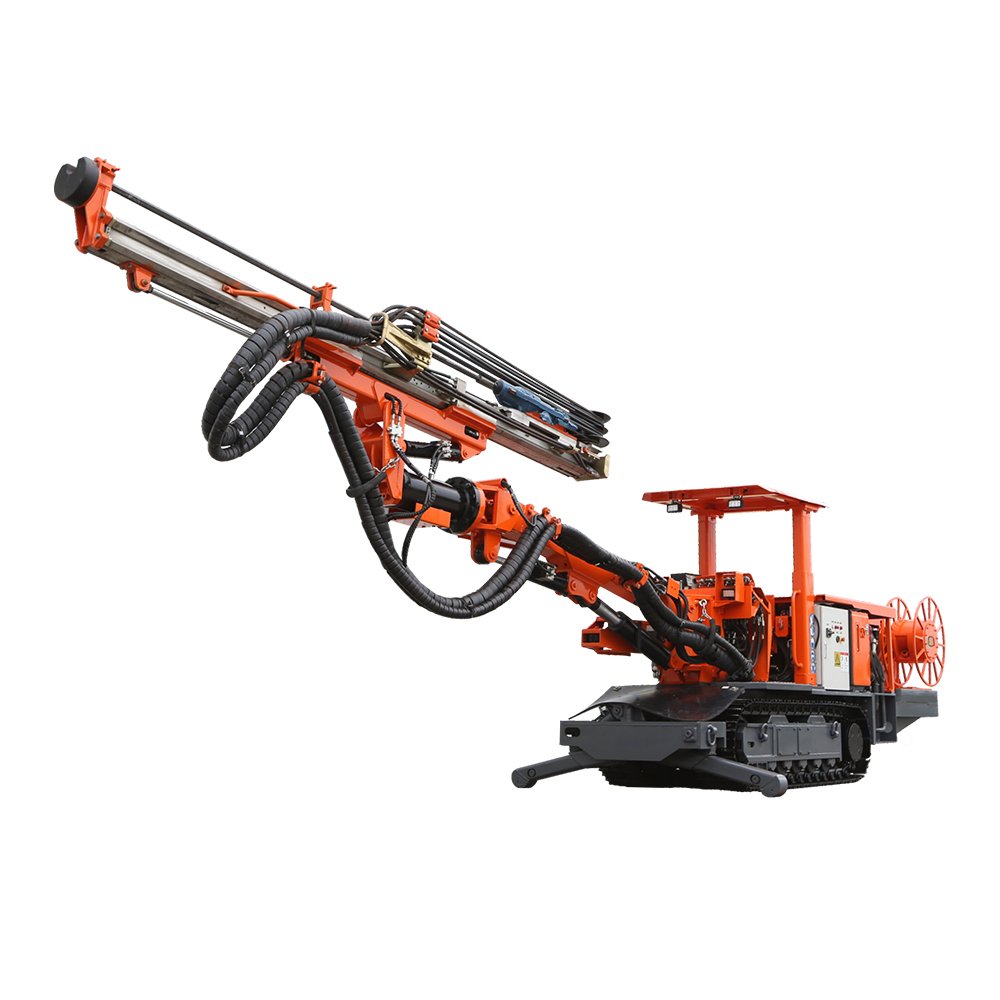

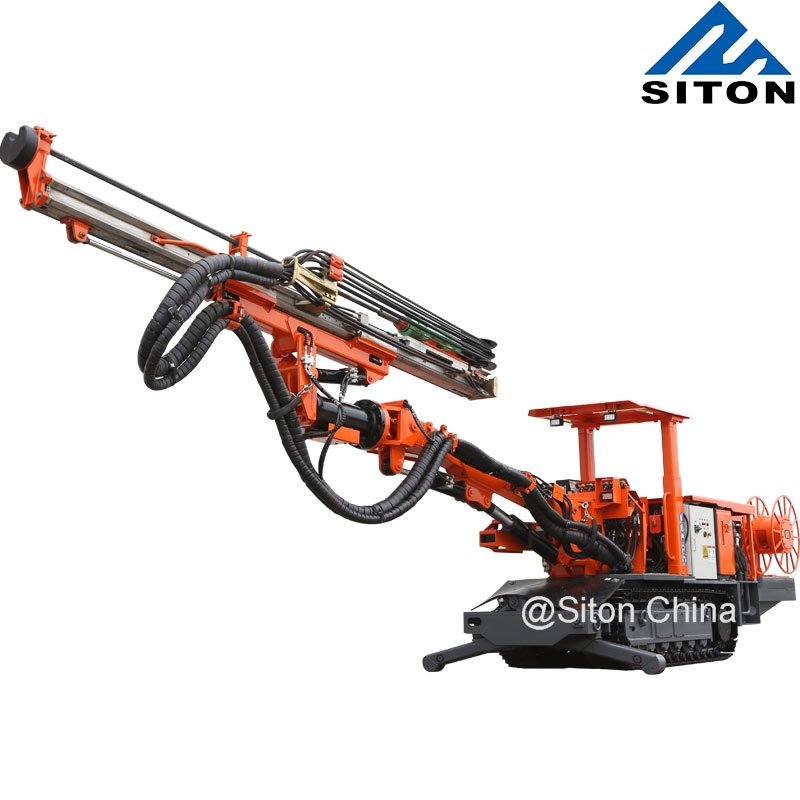

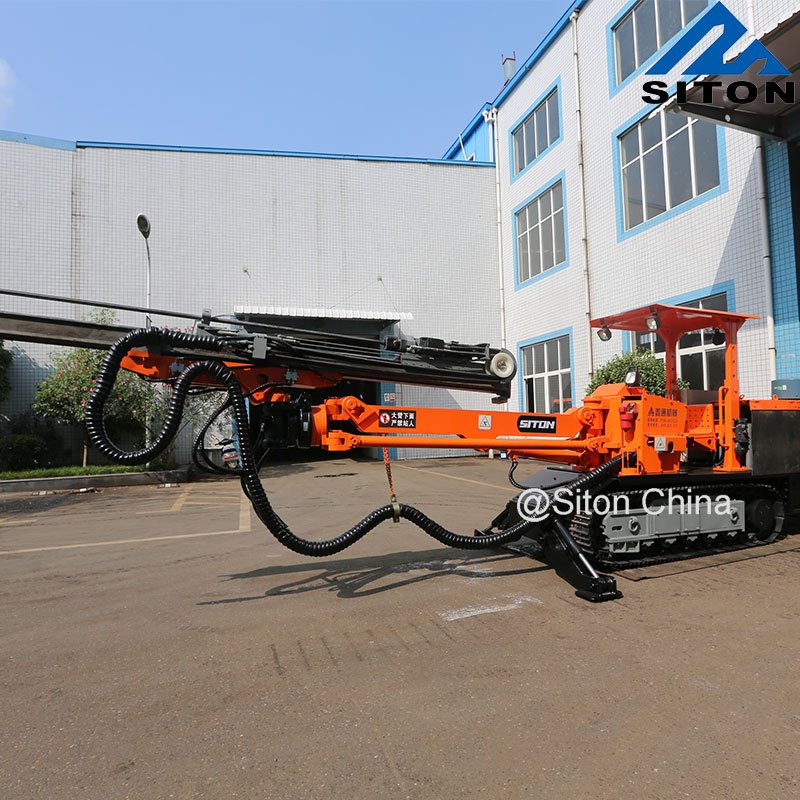

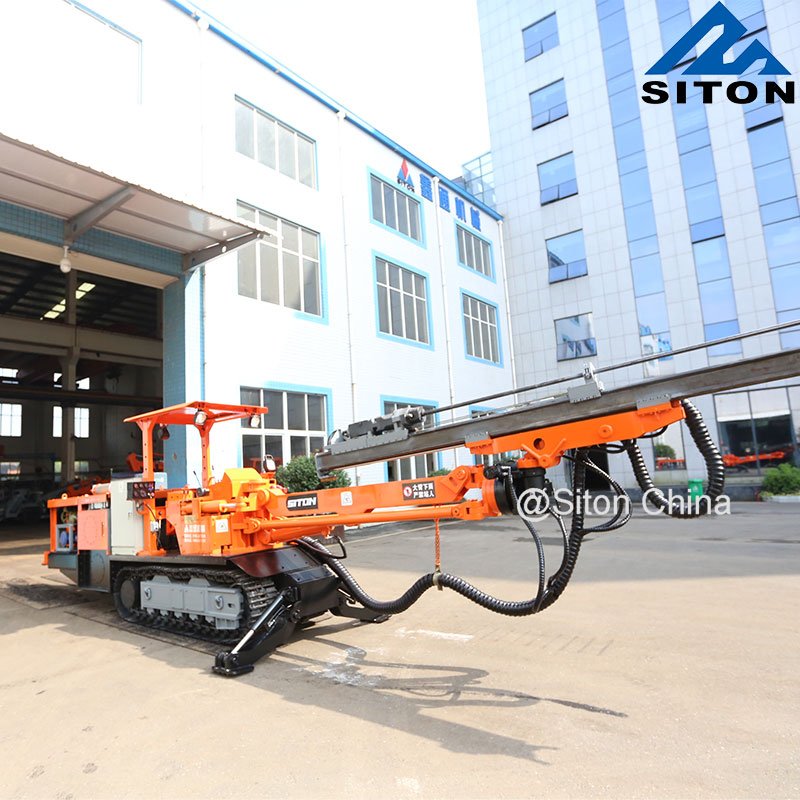

DT1-14 Crawler mine development drill rigs are specially designed for places of the slopes and small transition distances. The rock drilling speed of this mine jumbo drilling machine can reach 0.8-2 m/min. At the same time, the jumbo drill also is equipped with a fully hydraulic translational retractable boom, adapt to the working area of 5.8m width and 4.6m height.

Specifications

Product: Crawler Development Drill Rig
Place of Origin: Jiangxi, China
Certificate: FOPS/ROPS
Application: Non-coal mines, railways, tunnels, water diversion, etc.

Technical Parameters

Model No.	DT1-14 (Z4)	DT2-23	DT2-35	DT2-50
Main Information

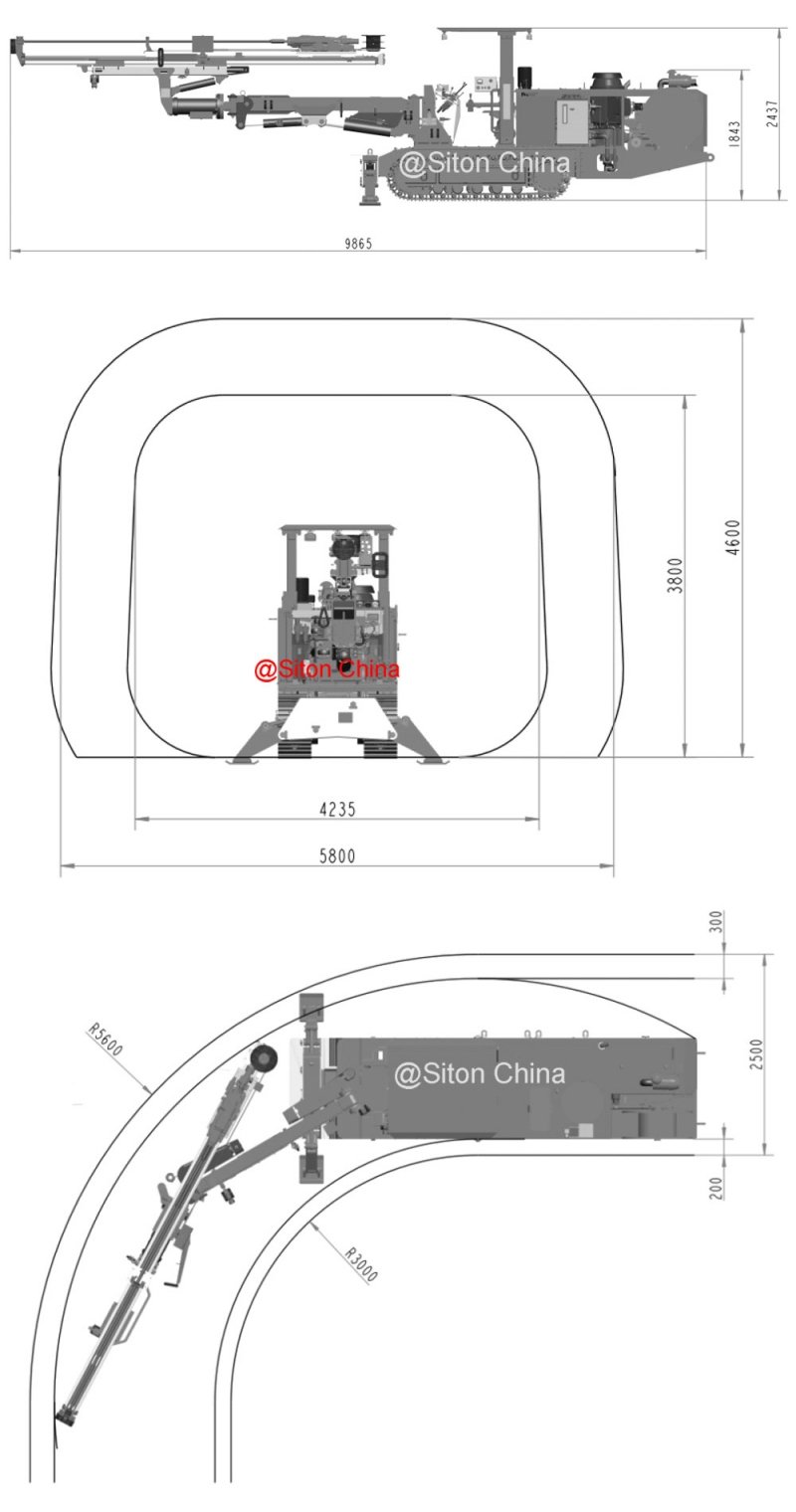

Dimension (mmmmmm)	9865X1250X (1845/2437)	(9550/10120) X1200X1380	9020X1350X2455	12500X2080X (3045/2100)
Weight (KG)	10300	13500	13500	20500
Turning Radius (mm)	3000/5600	5300	>6000	4000/7300
Working Area (m*m)	5.8X4.6 (Max)	5.9X4.3 (Max)	7.2X5.5 (Max)	3.5X3.5-8.35X6.35
Feed
Drill Rod Length (mm)	3700/3090	2475/3090	2475/3090	3090/3700/4310
Hole Depth (m)	3.35/2.7	2.1/2.7	2.1/2.7	2.7/3.4/4
Electrical System
Main Motors Power (KW)	55/37	79.4	79.4	117.7(55X2+5.5+2.2)
Voltage (V)	Customized
Chassis
Engine Rated Power (KW)	45	75	75	2X55
Walking Speed (Km/h)	2.1/1.1	2.4	2.4	2.2/4.2
Climbing Ability (degree °）	20	14	14	15
Rock Drill
Model	WOSERLD 18KW, M10B/D	WOSERLD M8B/D	WOSERLD M8B/D	WOSERLD 13B/D,18KW
Shank	T38/R32	/	/	/
Drilling Diameter (mm)	32-76	38-64	38-64	36-102
Max. Impact power (KW)	45217	8	8	13/18
Impact Frequency (HZ)	60/53	65	65	62/47
